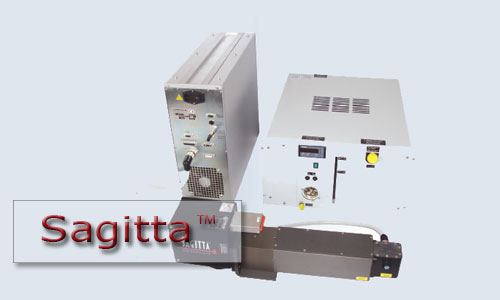

Sagitta Series High Power DPSS Nd:YAG OEM Laser Sources

The SAGITTA™ Series, a more powerful evolution of Laservall's popular and industry tested VIOLINO™ Series (in production since 1998) is the most recent addition to the Laservall Family of high beam quality DPSS lasers built upon Laservall's M³ Design™ philosophy.

The Sagitta™ Series was conceived to perform “difficult” industrial applications where the performance standards of common industrial laser sources presently available on the market at comparable prices do not suffice. Such applications might include:

1. Deep, highly precise marking and 3-D engraving.
2. Very fine black surface marking on steel.



~~~Technical Characteristics~~~
Laser	Sagitta
Wavelength	1064 nm
Nominal Power	60W
Mode/Quality	Multimode M^2<4
Modulation	TTL 5 kHz to 100 kHz
Laser Pumping	Diode Laser
Pilot Laser	Red Laser Diode
Electrical Connection	90v to 240v
Frequency	50-60 Hz
Power Consumption	Max 1200W
~~~Dimension (LxWxH)~~~
Rack	7.09" x 19.69" x 17.72"
Resonator	2.76" x 10.24" x 2.76"
Marking Head	6.50" x 4.65" x 6.14"
~~~Weight~~~
Rack	41.8 lb
Resonator	6.6 lb
Marking Head	8.3 lb
~~~Scan Head~~~
Nominal Focal Length	100 mm 160 mm 254 mm
Max Spot Diam	110µm 175µm 280µm
Marking Field	60x60 mm^2 110x110 mm^2 170x170 mm^2

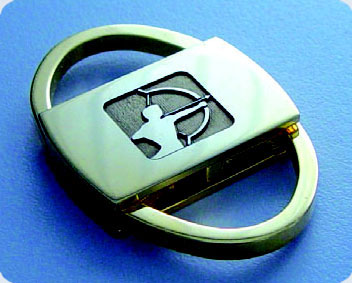

Sample Gallery
