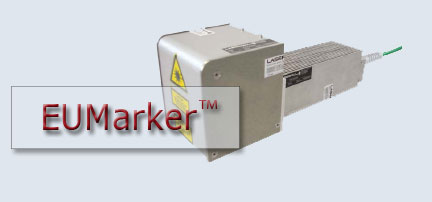

The EUMARKER™ is a economical breakthrough in DPSS Nd:YAG laser technology aimed at metal and plastics direct part marking applications.

The EUMARKER™ is based on the same end-pumping architecture used for the all of the industry-tested VIOLINO™ series lasers, but with the addition of a new Laservall scanning head and a newly optimized combination of optics and electronics.

Some innovations and advantages include:

• Highly efficient coupling technology
• Excellent beam quality
• High marking speed and precision
• Compact size and weight
• Entirely air cooled
• Economical price

The average diode lifetime is estimated at 10,000 hours, and since there are no other consumable parts in the system, it should be essentially maintenance free until replacement of the diode is required.

The included laser marking software package, Smartist 4.1, allows importing, editing and marking of the following:

• Vectorial and raster objects
• Text strings
• Barcodes
• Matrix codes
• Imported CAD and raster files

~~~Technical Characteristics~~~
Laser	EU Marker
Wavelength	1064 nm
Nominal Power	5W
Mode/Quality	TEM00 M^2<1.2
Modulation	Fixed
Laser Pumping	Diode Laser
Pilot Laser	Red Laser Diode
Electrical Connection	90v to 240v
Frequency	50-60 Hz
Power Consumption	Max 450W
~~~Dimension (LxWxH)~~~
Rack	7.09" x 19.69" x 17.72"
Resonator	2.76" x 10.24" x 2.76"
Marking Head	4.33" x 4.72" x 4.33"
~~~Weight~~~
Rack	41.8 lb
Resonator	6.6 lb
Marking Head	2.2 lb
~~~Scan Head~~~
Nominal Focal Length	63 mm 160 mm 160 mm
Max Spot Diam	20µm 50µm 50µm
Marking Field	30x30 mm^2 100x100 mm^2 110x110 mm^2
